Small Drip Irrigation Kit
Our Small Drip Irrigation Kit contains everything your need to water your vegetable garden in the most effective and environmentally friendly way. Drip irrigation allows you to use less water while watering more effectively. This is because you are only placing water directly where your plants need it – at the roots. Because you’re not watering the leaves, disease pressure and pest pressure will be greatly reduced.
Our Small Drip Irrigation Kit contains everything you need to water your small vegetable garden. Perfect for wanting to utilize drip irrigation, but have a small garden. Drip irrigation allows you to use less water while watering more effectively. This is because you are only placing water directly where your plants need it - at the roots. Because you're not watering the leaves, disease pressure and pest pressure will be greatly reduced.
You will also have much fewer weeds between rows in your vegetable garden. With overhead watering, many areas of the garden are unnecessarily watered, which results in watering weed seeds and germinating weeds that you don't want to grow. However, with drip irrigation, you only place water underneath or beside the plants and you don't water those spaces between rows.
The Small Drip Irrigation Kit also makes it really easy to fertilize your garden while you water it, saving you time and energy. By installing a Fertilizer Injector between the spigot and your irrigation system, you can easily inject water-soluble fertilizer into your watering system so that you feed your vegetable plants while you water them.

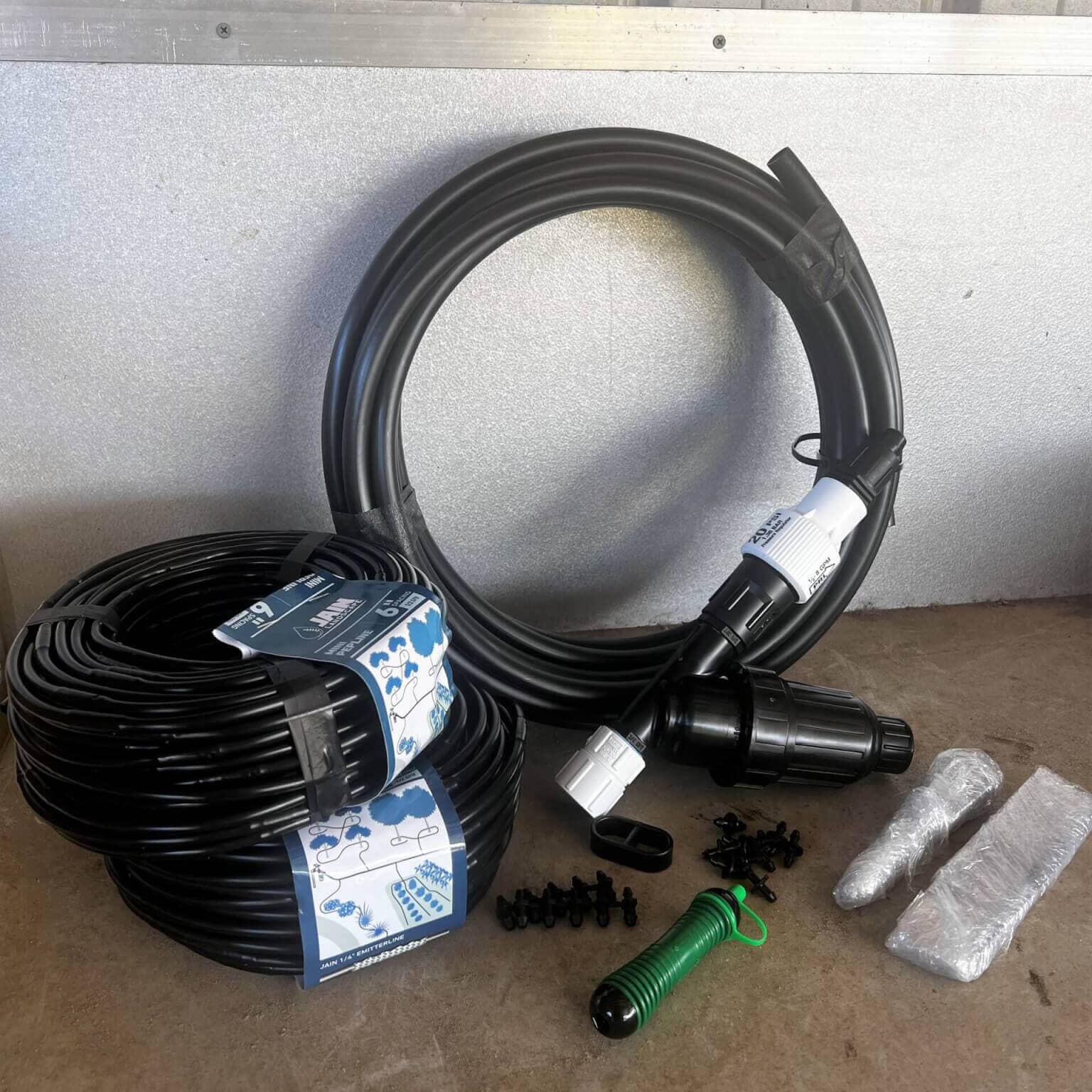

Small Drip Irrigation Kit Includes:
1 - 30 ft. roll of mainline tubing
2 - 100 ft. roll 1/4 tubing with emitters
1 - 20 PSI Filter Regulator Combo
1 - Figure 8 End Clamp
1 - Green Hole Punch
10 - Transfer Barbs
10 - Goof Plugs
10 - Garden Wire Pins
30- Drip Tubing Stakes
Small Drip Kit Irrigation Kit Requirements:
Water hose – connects to a 3/4″ water hose or 3/4″ spigot.
Pressure – PSI should be below 50 psi and 8 gallons per minute. Requires a flow rate between 0.4 to 8 gallons per minute. To calculate your flow rate, simply record the time (in minutes that it takes to fill a 5-gallon bucket with water. Then divide 5 by the time above to obtain your gallon-per-minute rate. For example, if it takes 30 seconds (0.5 minutes) to fill a 5-gallon bucket, your flow rate is 10 gallons per minute because:
5 gal / 0.5 min = 10 gal/min
Row length – Our tubing can be used on a maximum row length of 30 ft. at 20 psi. We don’t recommend using rows longer than 30 feet. If rows are too long, water will not be equally distributed throughout the tubing along the row.
Row number – With a flow rate of 5 gallons per minute, our tubing can support 300 feet of tubing. That’s the equivalent of 30 rows that are 10 feet long. To calculate how much tubing your system can support, first calculate your flow rate based on the example above. For example, if your flow rate is 8 gallons per minute, the maximum length of tape your system can support is 480 feet. The flow rate on the tubing is 0.5 gallons per emitter per hour. The emitter spacing is 6". Flow rate per foot/1 gallon per hour.
